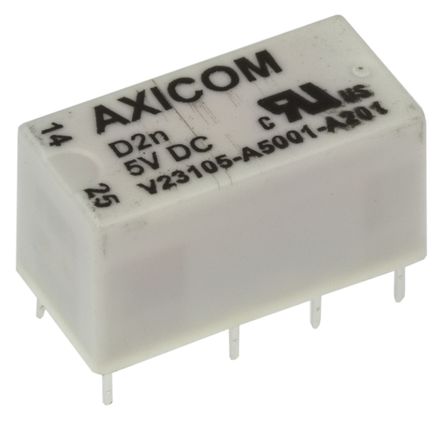

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

V23105A5001A201 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP
Current Rating	3 A
Power Consumption	150 mW
Coil Voltage	5 VDC
Coil Current	29.76 mA
Coil Resistance	167 Ω
Current Rating (Max)	3 A
Coil Voltage (DC)	5 V
Coil Power	150 mW
Input Power (Max)	60W, 125VA
Switching Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	250 VAC
Maximum Contact Resistance (Max)	<100 mΩ
	Show
Size-Length	20.2 mm
Size-Width	9.9 mm
Size-Height	10.8 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536490075
ECCN Code	EAR99
