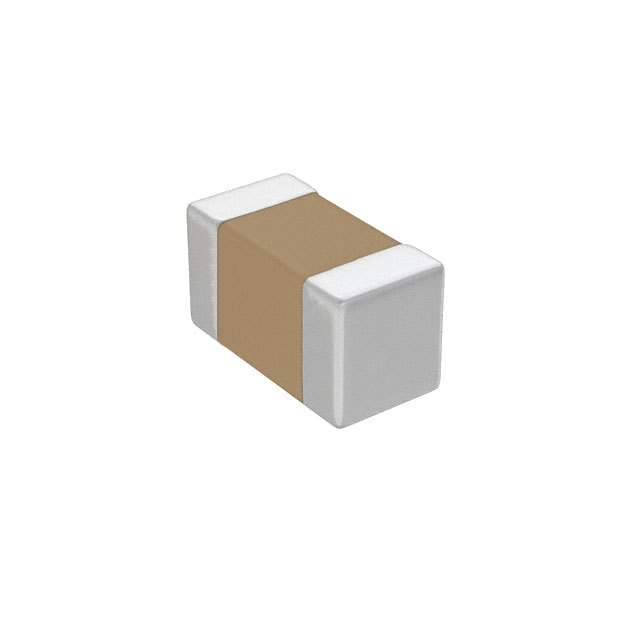

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The AVX TransGuard® Transient Voltage Suppressors (TVS) with unique high-energy multilayer construction represents state-of-the-art overvoltage circuit protection. Monolithic multilayer construction provides protection from voltage transients caused by ESD, lightning, NEMP, inductive switch ing, etc. True surface mount product is provided in EIA industry standard packages. Thru-hole components are supplied as conformally coated axial devices.
VC040209X200WP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 1005 |
| Case/Package | 0402 |
| Operating Voltage | 9.00 V |
| Capacitance | 175 pF |
| Number of Circuits | 1 Circuit |
| Clamping Voltage | 22 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating (DC Max) | 9 V |
| Voltage Rating (AC Max) | 6.4 V |
| Show | |
| Size-Length | 1 mm |
| Size-Width | 0.5 mm |
| Size-Height | 0.6 mm |
| Operating Temperature | -55℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
