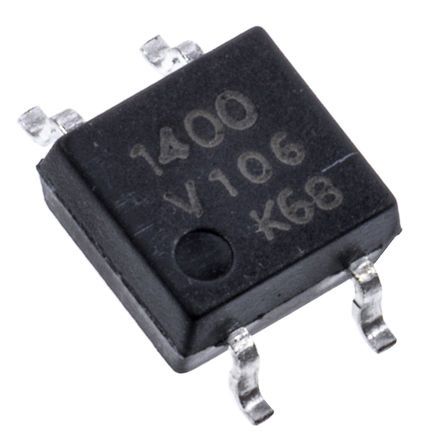

Image is for your reference only,please check specifications for details
- VO1400AEFTR - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC8597103
-
Category:Solid State Relay
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:MOSFET Relay, SPST-NO, 100mA, SMD, 60V, 5Ω, 1.5kV
-
Stock Locations:
-
Availability:1,113 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.27
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The VO1400AEFTR is a 1-pole optically isolated Solid-state Relay (SSR), surface mount, 1 form-A contact configuration, 1500VRMS isolation test voltage, TTL/CMOS compatible input.
VO1400AEFTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOP-4 |
| Output Voltage | 0V ~ 60V |
| Output Current | 100 mA |
| Contacts Type | SPST-NO |
| Load Current | 100 mA |
| Forward Voltage | 1.40 V |
| Input Current | 50 mA |
| Power Dissipation | 400 mW |
| Resistance | 2.30 Ω |
| Isolation Voltage | 1.5 kV |
| Forward Current | 1 mA |
| Input Voltage (Max) | 1.4 V |
| Output Voltage (Max) | 60 V |
| Output Current (Max) | 0.1 A |
| Input Current (Min) | 50 mA |
| Load Current (Max) | 0.1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 400 mW |
| Input Voltage | 1.10 VDC |
| Show | |
| Size-Length | 4.7 mm |
| Size-Height | 2.3 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
