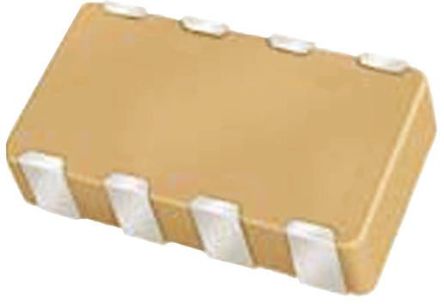

Image is for your reference only,please check specifications for details

W3A45C102M4T2A - AVX
Manufacturer:
AVX
ManyChip's Part#:
MC22857865
Category:
Capacitor Array
Package:
0612
Datasheet:
Datasheet 3D Model
Description:
Cap Ceramic Array 0.001uF 50V X7R 20% 0612 Pad SMD 4 Capacitor 125℃ Automotive T/R
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The W3A45C102M4T2A is a Capacitor Array with X7R dielectric. It is suitable for mobile and cordless phones, digital set top boxes and RF modems.
Ni and Sn plated termination
4 Number of caps

Show

W3A45C102M4T2A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	0612
Voltage Rating (DC)	50.0 V
Capacitance	1000 pF
Capacitance Tolerance	±20 %
Dielectric Characteristic	X7R
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	50 V
	Show
Size-Length	1.6 mm
Size-Width	3.2 mm
Size-Height	1.35 mm
Material	Ceramic
Dielectric Material	Ceramic
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
