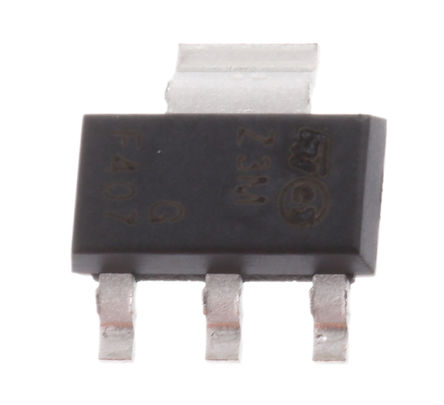

Image is for your reference only,please check specifications for details

Z0103MN 5AA4 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC1489146
Category:
TRIAC Diode, TRIAC
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS Z0103MN 5AA4 Triac, 600V, 3mA, 1A, 8A, 7mA, 1.3V
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Z0103MN 5AA4 is a 3-pin Standard TRIAC for general purpose AC switching and can be used as ON/OFF function. The Z01 series TRIAC"s sensitive gate current allows optimized performance when driven directly through microcontrollers.

Show

Z0103MN 5AA4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Voltage Rating (DC)	600 V
Current Rating	1.00 A
Number of Positions	3 Position
Holding Current	7 mA
Holding Current (Max)	7 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.8 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
