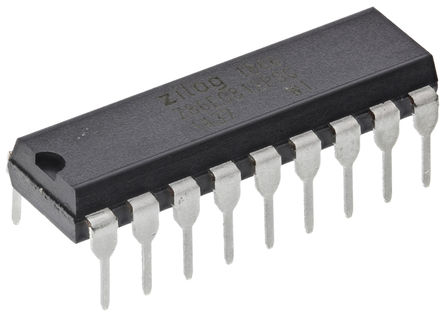

Image is for your reference only,please check specifications for details

Z86E0812PSG1866 - Zilog
Manufacturer:
Zilog
ManyChip's Part#:
MC17861344
Category:
Microcontroller, MCU IC
Package:
DIP-18
Datasheet:
Datasheet 3D Model
Description:
ZILOG Z86E0812PSG1866 8Bit Microcontroller, One Time Programmable, Z8, 12MHz, 2KB, 125Byte, 18Pins, DIP
Stock Locations:
Availability:
1,030 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.81

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Z86E0812PSG1866 is an One-time programmable (OTP) 8-bit Microcontroller based on single-chip Z8® MCU family that allow easy software development, debug, prototyping and small production runs not economically desirable with masked ROM versions. For applications demanding powerful I/O capabilities, the dedicated input and output lines are grouped into three ports and are configurable under software control to provide timing, status signals or parallel I/O. Two on-chip counter/timers, with a large number of user selectable modes, offload the system of administering real-time tasks such as counting/timing and I/O data communications.
14 Input/Output lines
Six vectored, prioritized interrupts (3 falling edge, 1 rising edge, 2 timers)
Two analog comparators
Low noise, ROM protect, Auto latch, Watch-dog timer, EPROM/Test mode disable
Two programmable 8-bit counter/timers, each with 6-bit programmable prescaler
Power-on reset (POR)
On-chip oscillator that accepts XTAL, ceramic resonance, LC, RC or external clock
Clock-free WDT reset
Low-power consumption (50mw typical)
Fast instruction pointer (1µs at 12MHz)

Show

Z86E0812PSG1866 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	18 Pin
Case/Package	DIP-18
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Number of Positions	18 Position
Clock Speed	12.0 MHz, 12.0 MHz (max)
RAM Memory Size	125 x 8
Number of Bits	8 Bit
Power Dissipation	1650 mW
Number of I/O Pins	14 IO
Access Time	12.0 µs
Core Architecture	Z8
Memory Size	2000 B
Number of Inputs and Outputs	14 Input IO
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1650 mW
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	23.37 mm
Size-Width	6.48 mm
Size-Height	3.43 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
