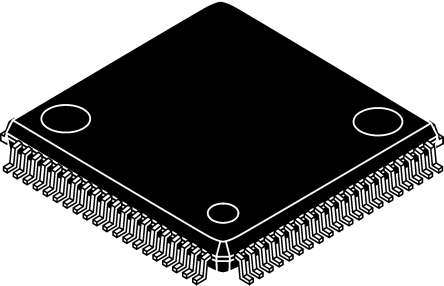

Image is for your reference only,please check specifications for details
- Z8F6423FT020SG - Zilog
-
Manufacturer:Zilog
-
ManyChip's Part#:MC30225200
-
Category:8-Bit Microcontroller IC
-
Package:QFP-80
-
Datasheet:Datasheet 3D Model
-
Description:МКУ, 8-бит, серия XP F64xx, с 64 КБ встроенной флэш-памяти, 80 выводов, QFP, 20 МГц, 0°C ~ +70℃, без свинца
-
Stock Locations:
-
Availability:281 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.36
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Z8F6423FT020SG - это высокопроизводительный 8-битный микроконтроллер Z8 Encore XP на базе процессора eZ8. Серия Z8 Encore XP F64xx добавляет флеш-память к обширной линейке 8-битных микроконтроллеров. Возможность внутрисхемного программирования флеш-памяти позволяет сократить время разработки и вносить изменения в программы в полевых условиях. Новый процессор eZ8 обратно совместим с существующими инструкциями Z8. Богатый набор периферийных устройств серии Z8 Encore XP F64xx делает её подходящей для различных применений.
- 20-МГц процессор eZ8
- До 64 кБ флеш-памяти с возможностью внутрисхемного программирования
- 12-канальный 10-битный АЦП
- Два полнодуплексных 9-битных UART с управлением включением драйвера приемопередатчика шины
- Меж-интегральная схема (I²C)
- Последовательный периферийный интерфейс (SPI)
- Два инфракрасных кодировщика/декодировщика, совместимых с IrDA
- До четырех 16-битных таймеров с возможностью захвата, сравнения и ШИМ
- Сторожевой таймер (WDT) с внутренним RC-генератором
- 3-канальный контроллер DMA
- До 60 выводов ввода/вывода (I/O)
- 24 прерывания с настраиваемым приоритетом
- Внутрисхемный отладчик
- Защита от понижения напряжения (VBO)
- Сброс при включении (POR)
Z8F6423FT020SG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 80 Pin |
| Case/Package | QFP-80 |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Number of Positions | 80 Position |
| Clock Speed | 20.0 MHz, 20.0 MHz (max) |
| RAM Memory Size | 4 KB |
| Number of Bits | 8 Bit |
| Power Dissipation | 550 mW |
| FLASH Memory Size | 65536 B |
| Number of I/O Pins | 60 IO |
| Access Time | 20.0 µs |
| Core Architecture | Z8 |
| Memory Size | 64000 B |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 60 Input IO |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 550 mW |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 20.1 mm |
| Size-Width | 14.1 mm |
| Size-Height | 2.8 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
