Description

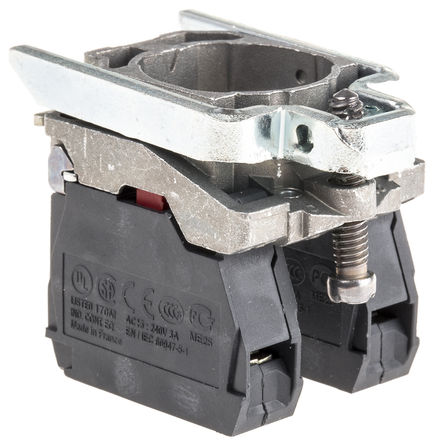

The ZB4BZ104 is a double-pole Contact Block with screw clamp terminals and silver alloy 2NC contacts. The block features slow-break operation, Zamak fixing collar and 10A cartridge fuse type short circuit protection. It is designed for use with XB4 series pushbutton switches.
IP20 Protection rating
-25 to 70°C Ambient temperature range

Show

ZB4BZ104 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Current Rating	10 A
Contact Current Rating	6 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	600 V
	Show
Operating Temperature	-25℃ ~ 70℃
Packaging	Bulk
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
