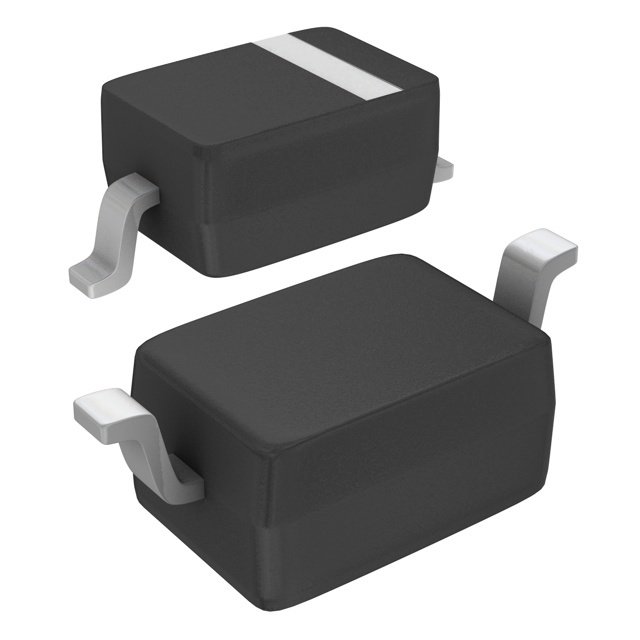

ZHCS400TA - Diodes
Manufacturer:
Diodes
ManyChip's Part#:
MC2039096
Category:
Schottky Diode
Package:
SOD-323
Datasheet:
Datasheet 3D Model
Description:
ZHCS400 Series 400mA 40V 40uA High Current Schottky Barrier Diode - SOD-323
Stock Locations:
Availability:
10,219 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.28

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZHCS Series diodes provide excellent high performance specifications in miniature surface mount packages. An optimized geometry / process with superior packaging gives an unmatched IF/VF performance and PDcapability, enabling significant space savings, circuit efficiencies and cost effective solutions to larger package options.
Features
VR40V and 60V types
Low forward voltage
High current capability
Fast recovery time
Miniature package size options
Very low VFat high temperature operation (above 85°C) (ZLLS series) complement the existing range of ZHCS series (optimized for operation at lower temperatures)
Applications
Forward and flyback converters
Mobile telecommunications, PCMCIA (flashcards) and
SCSI LAN PSUs
Distributed and auxiliary supplies
High frequency rectification
DC conversion (telecom DC modules)
Charging circuits
Motor control

Show

ZHCS400TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Voltage Rating (DC)	40.0 V
Current Rating	400 mA
Capacitance	20.0 pF
Power Rating	357 mW
Output Current	≤400 mA
Forward Voltage	1.05 V
Polarity	Standard
Power Dissipation	250 mW
Reverse recovery time	5 ns
Forward Current	1 A
Max Forward Surge Current (Ifsm)	6.75 A
Maximum Forward Voltage (Max)	500mV @400mA
Forward Current (Max)	400 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Length	1.8 mm
Size-Width	1.45 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
