Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 6 Pin |

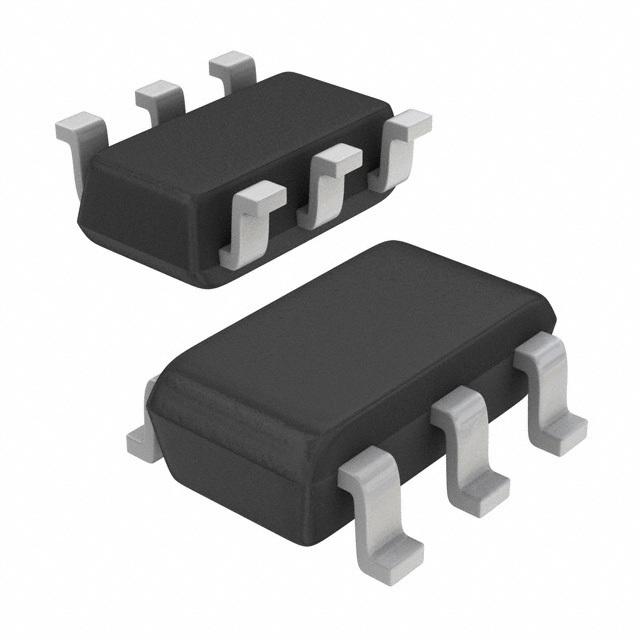

Case/Package | SOT-23-6 |
Voltage Rating (DC) | 40.0 V |
Current Rating | 2.20 A |
Capacitance | 65.0 pF |
Output Current | ≤2.20 A |
Forward Voltage | 540mV @2A |
Polarity | Standard |
Thermal Resistance | 113℃/W (RθJA) |
Reverse recovery time | 6 ns |
Forward Current | 2.2 A |
Max Forward Surge Current (Ifsm) | 36 A |
Maximum Forward Voltage (Max) | 540mV @2A |
Forward Current (Max) | 2.2 A |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | 55 ℃ |
Junction Temperature | 150℃ (Max) |
Power Dissipation (Max) | 1710 mW |
Show | |
Size-Length | 3.1 mm |
Size-Width | 1.8 mm |
Size-Height | 1.3 mm |
Operating Temperature | -55℃ ~ 150℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
ECCN Code | EAR99 |
