Description

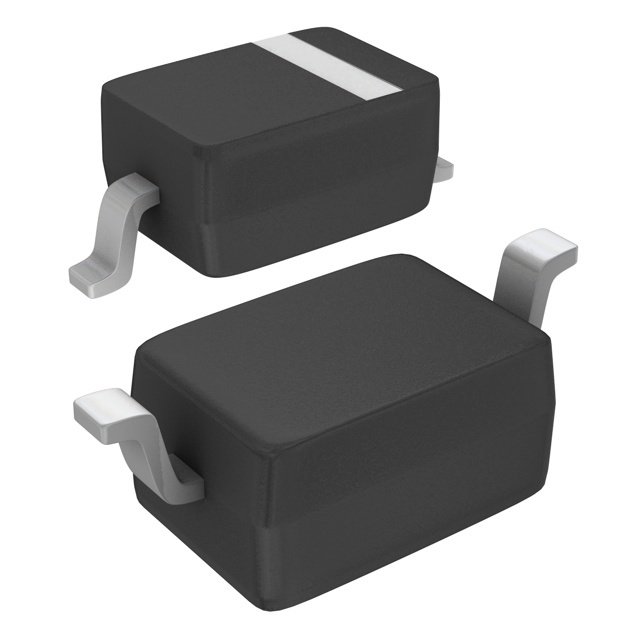

Converting from AC to DC is simple when using a Schottky diode ZLLS400TA rectifier from Diodes Zetex. Its maximum power dissipation is 390 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This rectifier has a minimum operating temperature of -55 °C and a maximum of 150 °C. Its peak non-repetitive surge current is 12 A, while its maximum continuous forward current is 0.52 A. It is made in a single configuration.

Show

ZLLS400TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Voltage Rating (DC)	40.0 V
Current Rating	520 mA
Capacitance	15.0 pF
Output Current	≤520 mA
Number of Positions	2 Position
Forward Voltage	500mV @400mA
Polarity	Standard
Power Dissipation	330 mW
Thermal Resistance	379℃/W (RθJA)
Reverse recovery time	3 ns
Forward Current	520 mA
Max Forward Surge Current (Ifsm)	12 A
Maximum Forward Voltage (Max)	500mV @400mA
Forward Current (Max)	520 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	390 mW
	Show
Size-Height	1.05 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
