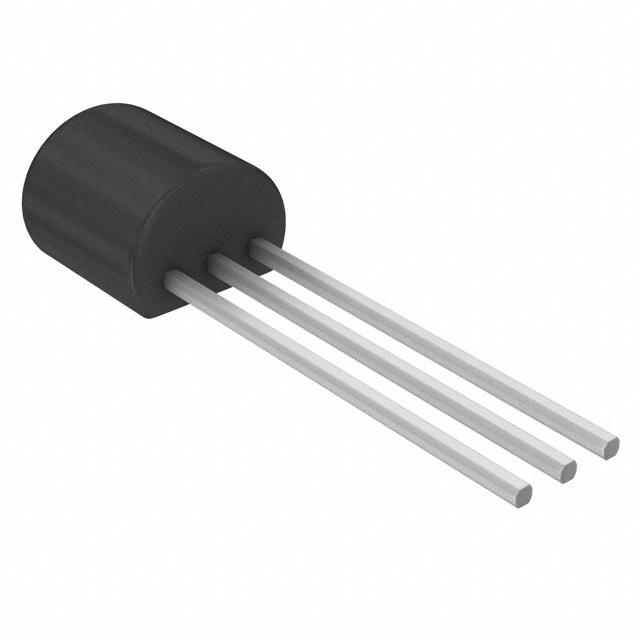

Image is for your reference only,please check specifications for details

ZTX605 - Diodes
Manufacturer:
Diodes
ManyChip's Part#:
MC12331430
Category:
BJT Transistor, BJT
Package:
E-Line-3
Datasheet:
Datasheet 3D Model
Description:
Bipolar (BJT) Single Transistor, Darlington, NPN, 120V, 150MHz, 1W, 1A, 5000 hFE
Stock Locations:
Availability:
222 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZTX605 is a 120V Silicon NPN Planar Medium Power Darlington Transistor with 1W power dissipation.

Show

ZTX605 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	E-Line-3
Voltage Rating (DC)	120 V
Current Rating	1.00 A
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	1 W
Breakdown Voltage (Collector to Emitter)	120 V
Continuous Collector Current	1A
hFE Min	2000 @1A, 5V
hFE Max	2000
Input Power (Max)	1 W
DC Current Gain (hFE)	5000
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	150MHz (Min)
Power Dissipation (Max)	1 W
	Show
Size-Length	4.77 mm
Size-Width	2.41 mm
Size-Height	4.01 mm
Operating Temperature	-55℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
