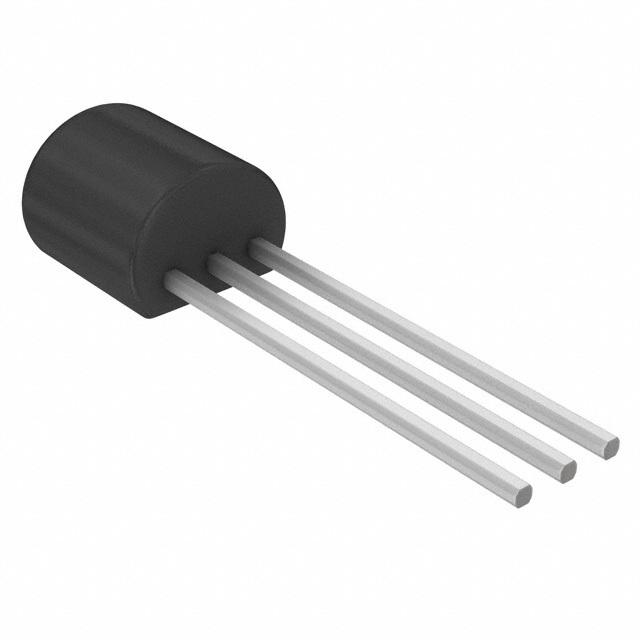

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Do you require a transistor in your circuit operating in the high-voltage range? This NPN ZTX649 general purpose bipolar junction transistor, developed by Diodes Zetex, is your solution. This bipolar junction transistor"s maximum emitter base voltage is 5 V. Its maximum power dissipation is 1000 mW. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 200 °C. It has a maximum collector emitter voltage of 25 V and a maximum emitter base voltage of 5 V.

Show

ZTX649 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	E-Line-3
Frequency	240 MHz
Voltage Rating (DC)	25.0 V
Current Rating	2.00 A
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	1 W
Breakdown Voltage (Collector to Emitter)	25 V
Continuous Collector Current	2A
hFE Min	100 @1A, 2V
Input Power (Max)	1 W
DC Current Gain (hFE)	200
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	Show
Material	Silicon
Operating Temperature	-55℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
