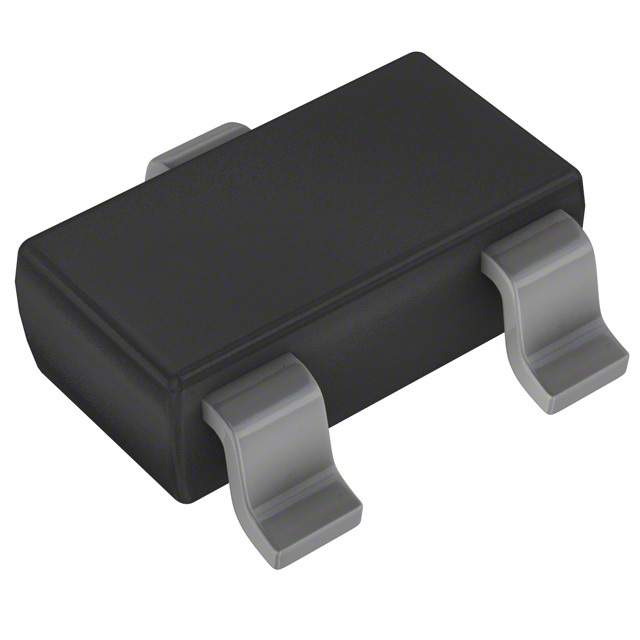

Image is for your reference only,please check specifications for details
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- P-Channel 100 V 20 Ohm Enhancement Mode Vertical DMOS FET-SOT-223
ZVP3310FTA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | -100 V |
| Current Rating | -75.0 mA |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 20 Ω |
| Polarity | P-Channel |
| Power Dissipation | 0.33 W |
| Input Capacitance | 50.0 pF |
| Drain to Source Voltage (Vds) | 100 V |
| Breakdown Voltage (Drain to Source) | 100 V |
| Breakdown Voltage (Gate to Source) | ±20.0 V |
| Continuous Drain Current (Ids) | 75.0 mA |
| Rise Time | 8 ns |
| Input Capacitance (Ciss) | 50pF @25V(Vds) |
| Input Power (Max) | 330 mW |
| Fall Time | 8 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 330 mW |
| Show | |
| Size-Length | 3.04 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1.02 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
