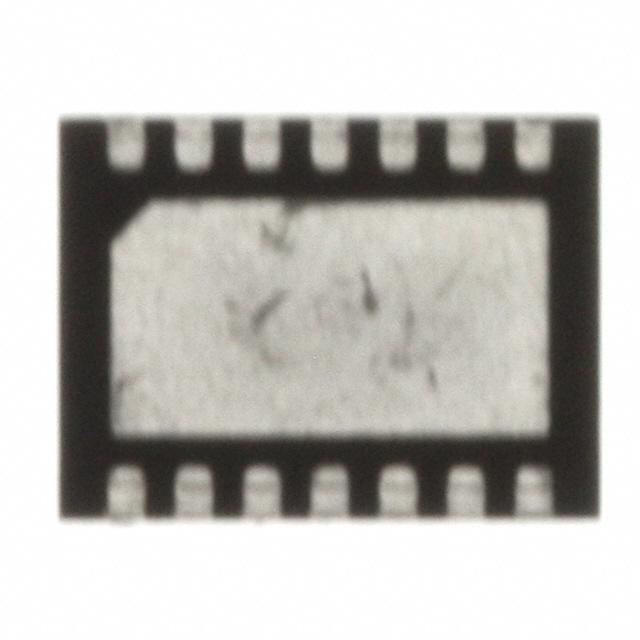

Image is for your reference only,please check specifications for details
- ZXLD1321DCATC - Diodes
-
Manufacturer:Diodes
-
ManyChip's Part#:MC13756696
-
Category:LED Driver, LED Display Driver
-
Package:DFN-14
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 1.2V to 12V Step Up Single-Out 18V 2A 8W 14Pin DFN EP T/R
-
Stock Locations:
-
Availability:1,394 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.49
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ZXLD1321 Series 1 A 12 V 600 kHz Boost Mode DC-DC Converter for LED - DFN-14
ZXLD1321DCATC Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | DFN-14 |
| Frequency | 600 kHz |
| Operating Voltage | 1.2V ~ 12V |
| Number of Outputs | 1 Output |
| Output Voltage | 18 V |
| Output Current | 1 A |
| Switching Frequency | 600 kHz |
| Input Voltage (Max) | 12 V |
| Input Voltage (Min) | 1.2 V |
| Input Power (Max) | 8 W |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2V ~ 12V |
| Supply Voltage (Max) | 12 V |
| Supply Voltage (Min) | 2 V |
| Input Voltage | 1.2 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Discontinued at Digi-Key |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
