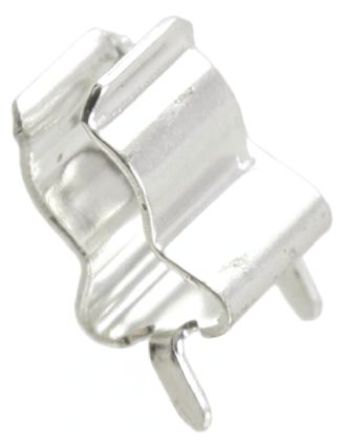

Image is for your reference only,please check specifications for details

01020071Z - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC9665729
Category:
Fuse Holder
Package:
PQFP
Datasheet:
Datasheet 3D Model
Description:
LITTELFUSE 01020071Z Fuse Holder, 250V, 250V, 15A, Cartridge Fuse Clip, Through Hole, 1
Stock Locations:
Availability:
677 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 01020071Z is a 1-fuse ear style circuit board mount Cartridge Fuse Clip made of spring brass body with tin-plating. It is suitable for use with the 1/4-inch diameter 3AG/3AB fuses. It features pin holder terminals.

Show

01020071Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	PQFP
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	15 A
Number of Circuits	1 Circuit
Voltage Rating	250 VAC
	Show
Size-Length	7.11 mm
Size-Width	7.87 mm
Size-Height	10.67 mm
Material	Brass
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
