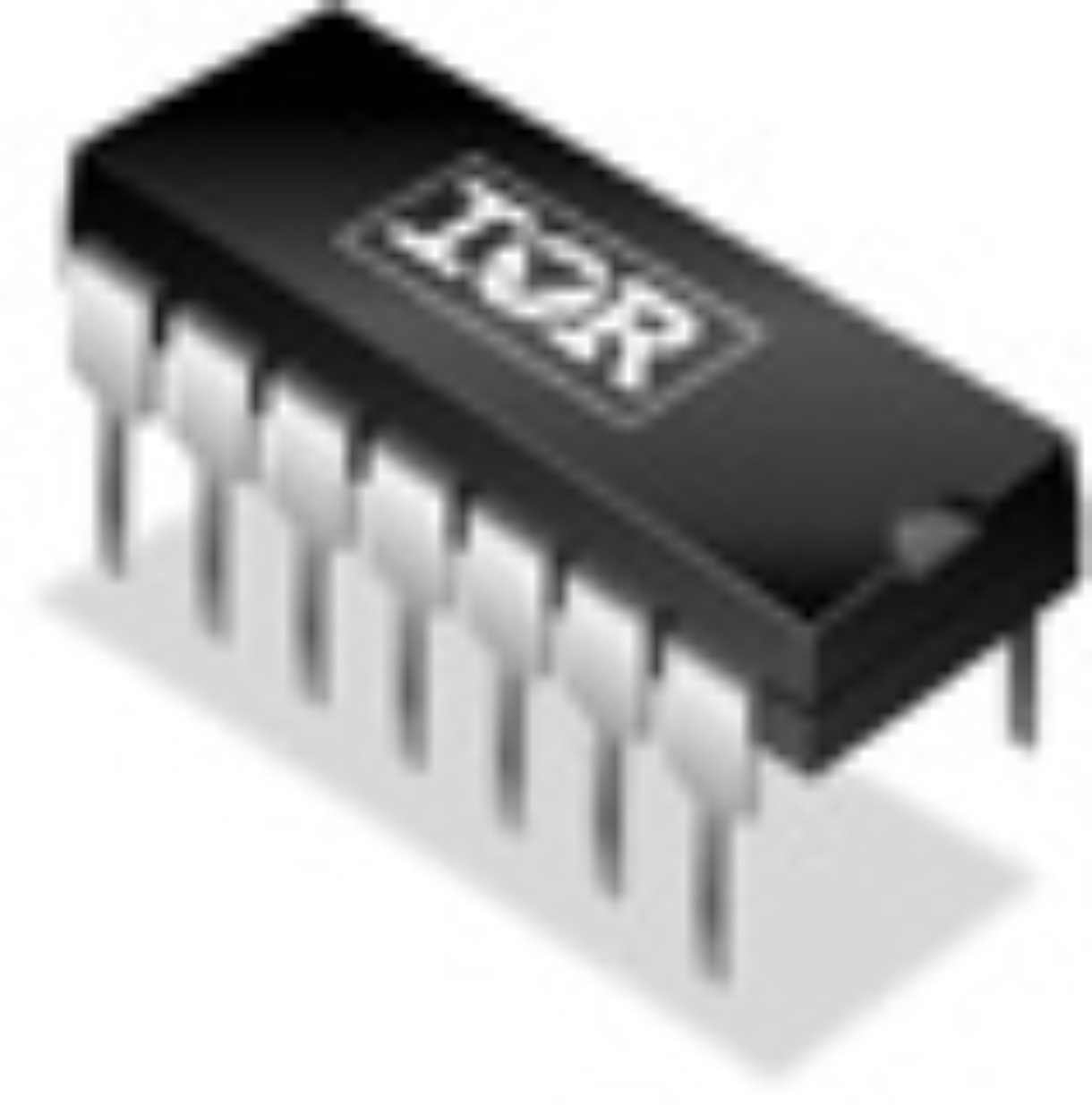

- IR21844 - Infineon Technologies AG
-
Manufacturer:Infineon Technologies AG
-
ManyChip's Part#:MC182731890
-
Category:FET Drivers
-
Package:PDIP-14
-
Datasheet:Datasheet 3D Model
-
Description:600V Half Bridge Driver IC с типичными токами источника 1,9 А и токами поглощения 2,3 А в корпусе PDIP с 14 выводами для IGBT и MOSFET. Также доступен в корпусах SOIC с 14 выводами, SOIC с 8 выводами и PDIP с 8 выводами.
-
Stock Locations:
-
Availability:329 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Краткое описание характеристик:
- Плавающий канал, разработанный для работы в режиме буферного питания
- Полностью работоспособен при напряжении +600 В
- Устойчив к отрицательным переходным напряжениям
- Защита от изменения скорости изменения напряжения (dV/dt)
- Диапазон питания для управляющего сигнала на затворе от 10 до 20 В
- Ограничение низкого напряжения для обоих каналов
- Совместимость с логикой входных сигналов 3,3 В и 5 В
- Согласованная задержка распространения для обоих каналов
- Отклонение +/- 5 В для логической и силовой земли
- Уменьшенный дифференциал тока на затворе для повышения помехоустойчивости
- Максимальная мощность источника/поглощения тока: 1,4 А / 1,8 А
IR21844 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | PDIP-14 |
| Rise/Fall Time | 40ns, 20ns |
| Supply Voltage | 10V ~ 20V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
