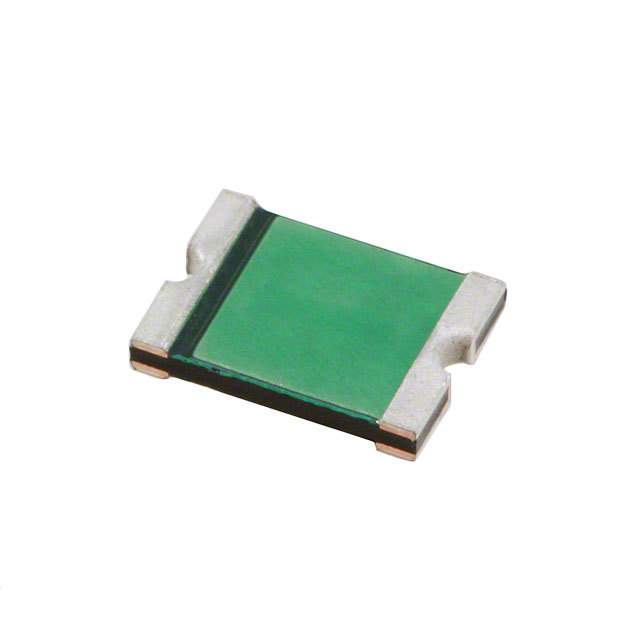

Image is for your reference only,please check specifications for details
- 0ZCG0300FF2B - BEL Fuse
-
Manufacturer:BEL Fuse
-
ManyChip's Part#:MC17249363
-
Category:Fuse
-
Package:1812
-
Datasheet:Datasheet 3D Model
-
Description:PTC Resettable Fuse 3A(hold) 5A(trip) 6VDC 100A 1W 4s 0.012Ω SMD Solder Pad 1812 T/R
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Avoid delays in resuming normal operation with this 0ZCG0300FF2B PTC resettable fuse from Bel Fuse. This device has a maximum current rating of 100. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73(Max) mm long, 1.55(Max) mm tall and 3.41(Max) mm deep.
0ZCG0300FF2B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 4532 |
| Case/Package | 1812 |
| Time to Trip | 4 s |
| Power Dissipation | 1 W |
| Resistance | 0.04 Ω |
| Holding Current | 3 A |
| Trip Current | 5 A |
| Current Rating (Max) | 100 A |
| Holding Current (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 6 VDC |
| Voltage Rating | 6 VDC |
| Show | |
| Size-Length | 4.5500 mm |
| Size-Width | 3.2400 mm |
| Size-Height | 1.55 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
