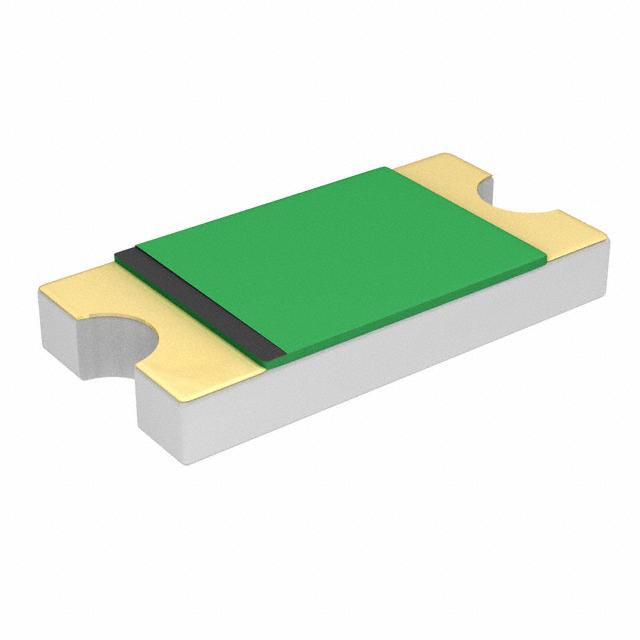

Image is for your reference only,please check specifications for details
- 0ZCJ0005FF2E - Bel Fuse Inc.
-
Manufacturer:Bel Fuse Inc.
-
ManyChip's Part#:MC1228800
-
Category:Fuses
-
Package:1206
-
Datasheet:Datasheet 3D Model
-
Description:PTC-регульный предохранитель 0,05 А (состояние хранения), 0,15 А (в момент отключения), напряжение 60 ВDC, пусковый ток 10 А, мощность 0,4 Вт, время срабатывания 1,5 секунды, сопротивление обмотки 3,6 Ом, используется технология SMD-соединений, размеры: 3,5 х 1,8 х 0,85 мм, имеет два терминала. Предохранитель следует устанавливать на печатную плату с использованием технологии поверхностного крепления для достижения наилучших результатов. Длина продукта составляет 3,5 мм, высота – 0,85 мм, глубина – 1,8 мм.
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Используйте этот PTC-регульный предохранитель модели 0ZCJ0005FF2E от Bel Fuse вместо постоянно перезаправляемых изнашенных предохранителей. Максимальный ток, который может выдержать этот предохранитель, составляет 10 А. Диапазон рабочих температур – от -40 °C до 85 °C. Предохранитель имеет два терминала. Чтобы обеспечить наилучшие результаты, установите предохранитель на печатную плату с использованием технологии поверхностного крепления. Длина продукта составляет 3,5 мм, высота – 0,85 мм, глубина – 1,8 мм.
0ZCJ0005FF2E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 3216 |
| Case/Package | 1206 |
| Time to Trip | 1.5 s |
| Power Dissipation | 0.4 W |
| Resistance | 50 Ω |
| Holding Current | 0.05 A |
| Trip Current | 150 mA |
| Current Rating (Max) | 10 A |
| Holding Current (Max) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 60 VDC |
| Voltage Rating | 60 VDC |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
