1017C Murata Manufacturing Co., Ltd. - Transformers

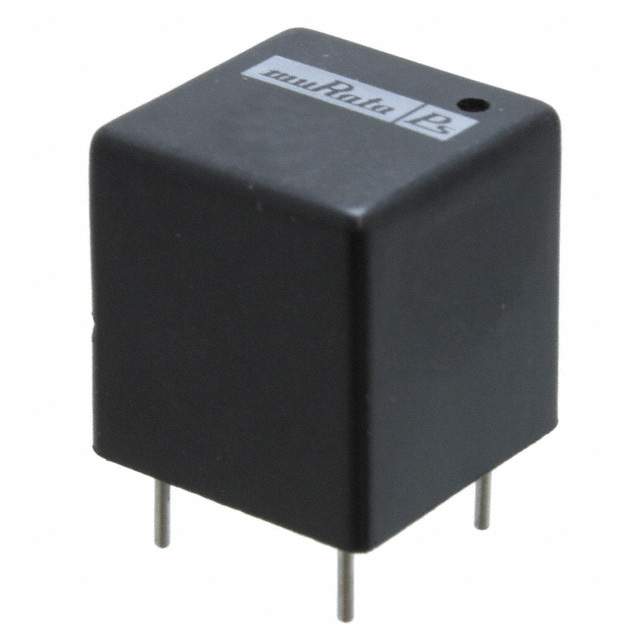

Image is for your reference only,please check specifications for details

1017C - Murata Manufacturing Co., Ltd.
Manufacturer:
Murata Manufacturing Co., Ltd.
ManyChip's Part#:
MC9189855
Category:
Transformers
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Пульсный трансформатор 1:1, напряжение 4000 Врм, сопротивление в первом состоянии 0,4 Ом; сопротивление во втором состоянии 0,3 Ом; время жизни конденсатора 4 пФ, напряжение на входе 130 Вус.
Stock Locations:
Availability:
498 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.9

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

1017C производится компанией Murata Power и относится к категории пульсных трансформаторов. 1017C описывается как ТРАНСФОРМЕТОР ПУЛС 1:1, частота 0,8 МГц. Perfect Parts – поставщик трансформаторов и других элементов.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP
Capacitance	20.0 pF
Inductance	800 µH
Isolation Voltage	4 kV
DC Resistance (DCR)	0.4 Ω
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	Show
Size-Length	15.06 mm
Size-Width	15.06 mm
Size-Height	15.75 mm
Weight	8.22 g
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
