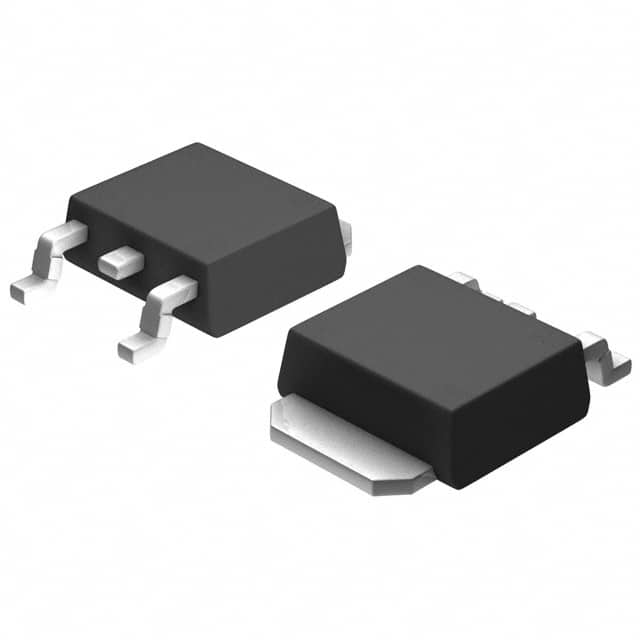

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Bipolar (BJT) Transistor NPN 50V 3A 320MHz 10W Surface Mount TO-252
2SCR573D3TL1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Power Rating | 10 W |
| Number of Positions | 3 Position |
| Power Dissipation | 10 W |
| Breakdown Voltage (Collector to Emitter) | 50 V |
| hFE Min | 180 @100mA, 3V |
| Input Power (Max) | 10 W |
| DC Current Gain (hFE) | 180 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 10000 mW |
| Show | |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status |
