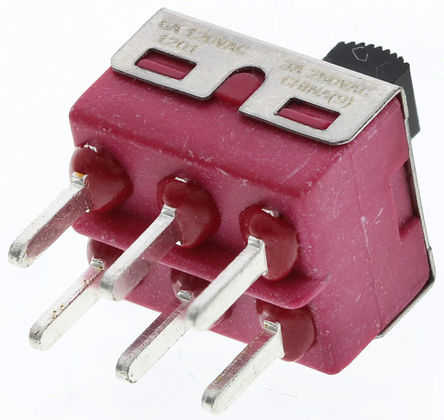

Image is for your reference only,please check specifications for details

1201M2S3CQE2 - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC8304300
Category:
Slide Switch, Switch Slide
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Switch Slide ON None ON DPDT Top Slide 6A 250VAC 28VDC PC Pins Thru-Hole
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.89

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1201M2S3CQE2 is a double-pole double-throw (DPDT) PC mount vertical Miniature Slide Switch with PC through-hole termination, 0.200-inch high black nylon actuator and ON-NONE-ON function. The 1000 series switch has silver plated copper alloy contact and stainless steel housing. Epoxy terminal seal is compatible with bottom-wash cleaning.
1000Vrms at sea level Minimum dielectric strength
-30 to 65°C Operating temperature range
Solderability as per MIL-STD-202F method 208D or EIA RS-186E method 9

Show

1201M2S3CQE2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	120
Contact Plating	Silver
Current Rating	6 A
Insulation Resistance	1000 MΩ
Number of Rows	2 Row
Orientation	Vertical
Contacts Type	DPDT
Flammability Rating	UL 94 V-0
Contact Resistance	10 mΩ
Current Rating (Max)	6A @120VAC, 28VDC
Operating Temperature (Max)	65 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	28 V
Voltage Rating (DC Max)	28 V
Voltage Rating (AC Max)	250 V
Maximum Contact Resistance (Max)	<10 mΩ
	Show
Size-Length	12.7 mm
Size-Height	14.25 mm
Contact Material	Silver
Operating Temperature	-30℃ ~ 65℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509050
ECCN Code	EAR99
