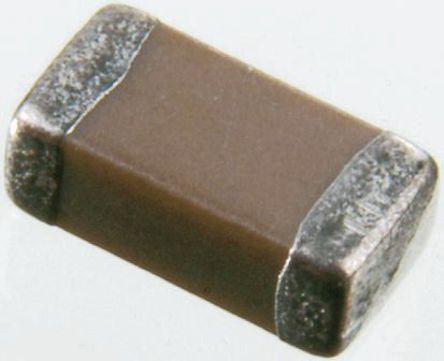

Image is for your reference only,please check specifications for details

Updated at 30/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AVX multilayer ceramic capacitors with EIA class I, C0G (NP0) dielectric material are highly stable ceramic chip capacitors for general purpose applications. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of ceramic dielectric.
Capacitance value ranges from 0.5pF to 0.1µF
EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 1825, 2220, 2225 case sizes available
Rated DC voltage of 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, 500V
±0.10pF, ±0.25pF, ±0.50pF, ±1%, ±2%, ±5% and ±10% tolerance
Nickel (Ni) and tin (Sn) plated terminations
Load life of 1000h at 125˚C
Operating temperature range from -55˚C to 125˚C

Show

12061A330JAT2A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	3216
Case/Package	1206
Voltage Rating (DC)	100 V
Insulation Resistance	100 GΩ
Capacitance	33 pF
Capacitance Tolerance	±5 %
Dielectric Characteristic	C0G/NP0
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	100 V
	Show
Size-Length	3.2 mm
Size-Width	0.063 in
Size-Height	0.94 mm
Size-Thickness	0.037 in
Material	C0G/-55℃~+125℃
Operating Temperature	-55℃ ~ 125℃
Temperature Coefficient	±30 ppm/℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	4000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
