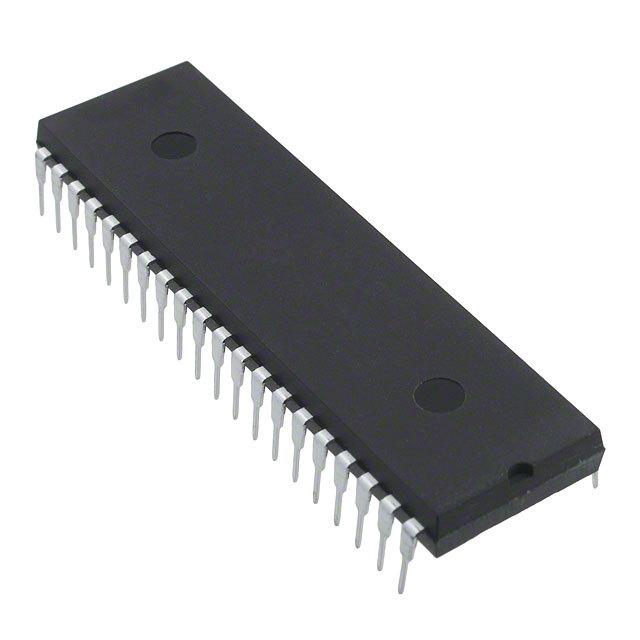

Image is for your reference only,please check specifications for details

TMS320C10NL - TI
Manufacturer:
TI
ManyChip's Part#:
MC105891927
Category:
DSP, Digital Signal Processor
Package:
DIP-40
Datasheet:
Datasheet 3D Model
Description:
DSP Fixed-Point 16Bit 20.5MHz 5MIPS 40Pin PDIP DSP Fixed-Point 16Bit 20.5MHz 5MIPS 40Pin PDIP
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

introduction
The TMS32010 digital signal processor (DSP), introduced in 1983, was the first DSP in the TMS320 family. From it has evolved this TMS320C1x generation of 16-bit DSPs. All ′C1x DSPs are object code compatible with the TMS32010 DSP. The ′C1x DSPs combine the flexibility of a high-speed controller with the numerical capability of an array processor, thereby offering an inexpensive alternative to multichip bit-slice processors.
•Performance Up to 8.77 MIPs
•All TMS320C1x Devices are Object Code Compatible
•144/256-Word On-Chip Data RAM
•1.5K/4K/8K-Word On-Chip Program ROM
•4K-Word On-Chip Program EPROM
(TMS320E14/P14/E15/P15/E17/P17)
•One-Time Programmable (OTP) Versions Available (TMS320P14/P15/P17)
•EPROM Code Protection for Copyright Security
•4K / 64K-Word Total External Memory at Full Speed
•32-Bit ALU/Accumulator
•16 ×16-Bit Multiplier With a 32-Bit Product
•0 to 16-Bit Barrel Shifter
•Eight Input/Output Channels
•Dual-Channel Serial Port
•Simple Memory and I/O Interface
•5-V and 3.3-V Versions Available (TMS320LC15/LC17)
•Commercial and Military Versions Available
•Operating Free-Air Temperature . . . 0°C to 70°C
•Packaging: DIP, PLCC, Quad Flatpack, and CER-QUAD

Show

TMS320C10NL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	40 Pin
Case/Package	DIP-40
Frequency	20.5 MHz
Supply Voltage (DC)	5.00 V, 7.00 V (max)
RAM Memory Size	288 B
Number of Bits	16 Bit
Power Dissipation	500 mW
FLASH Memory Size	4000 B
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	500 mW
	Show
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
