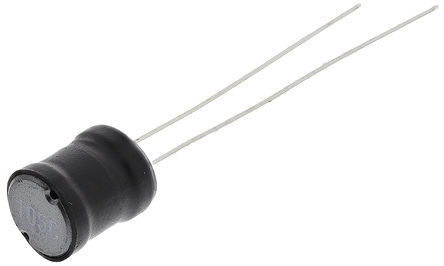

Image is for your reference only,please check specifications for details

13R105C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC29579200
Category:
Inductor
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 13R105C Inductor, Radial, 1300R Series, 1mH, 330mA, 330mA, 2.1Ω, ± 10%
Stock Locations:
Availability:
917 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.81

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Jump-start your electrical design by including this general purpose 13R105C leaded inductor from Murata. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its test frequency is 1K Hz. It has a tolerance of 10%. This device is made with wirewound technology. It has an inductance of 1m H. This leaded inductor has a maximum DC current of 330m A with a maximum resistance of 2.1 Ohm. This product is 13.5 mm tall with a diameter of 9.5 mm.

Show

13R105C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Current Rating	330 mA
Capacitance Tolerance	±10 %
Inductance	1 mH
Inductance Tolerance	±10 %
Test Frequency	1 kHz
DC Resistance (DCR)	2.1 Ω
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	2.1 Ω
	Show
Size-Length	13.5 mm
Size-Height	13.5 mm
Weight	2.4 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
