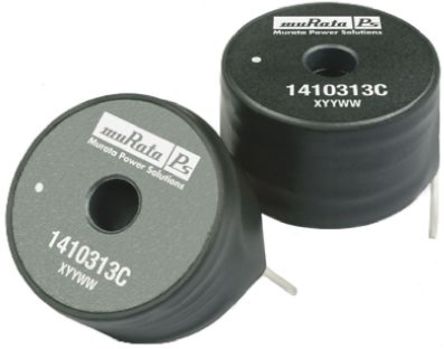

Image is for your reference only,please check specifications for details

1422441C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC15265650
Category:
Inductor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 1422441C Inductor, Radial Leaded, 1400 Series, 220μH, 4.1A, 4.1A, 0.073Ω, ± 10%
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.81

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This general purpose 1422441C leaded inductor from Murata Power Solutions is convenient and easily removable. This part has a pitch of 23.6 mm. This leaded inductor has an operating temperature range of -40 °C to 85 °C. This product is 27.8 mm long, 20 mm tall and 25.9 mm deep. This leaded inductor has a maximum DC current of 4.1 A with a maximum resistance of 73m Ohm. It has a tolerance of 10%. This device utilizes bobbin core technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2.3M(Typ) Hz. It has an inductance of 220u H.

Show

1422441C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Radial
Current Rating	4.1 A
Capacitance Tolerance	±10 %
Orientation	Vertical
Inductance	220 µH
Self Resonant Frequency	2.3 MHz
Q-Factor	33.0
Resistance	73 mΩ
Inductance Tolerance	±10 %
Test Frequency	0.001 MHz
DC Resistance (DCR)	≤73 mΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	73 mΩ
	Show
Size-Length	27.8 mm
Size-Width	24.4 mm
Size-Height	20 mm
Weight	40 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
