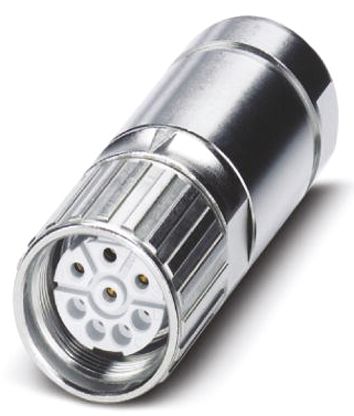

Image is for your reference only,please check specifications for details

1605617 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC99540996
Category:
Circular Connector, Connector Circular
Datasheet:
Datasheet 3D Model
Description:
SF SER SER, 8Pole Cable Mount Conn Plug, M23 Size, Female Contacts, Screw On Mating
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**M23 Power Plug-in Connectors, 8 Way**
A comprehensive offering of Phoenix Contact M23 Power Plug-in Connectors, 4+3 pole plus earth and shielded, compatible with the SPEEDCON range of connectors. Featuring panel mount and cable mount connectors with standard knurled nuts and which are rated at 30A/630V, suitable for power and many other applications.

Show

1605617 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Contacts	8 Contact
Gender	Female
Current Rating	30 A
Number of Positions	7 Position
Current Rating (Max)	27 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	630 V
	Show
Housing Color	Silver
Contact Material	Brass
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
