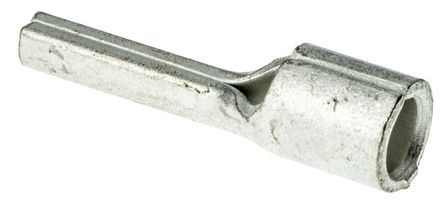

Image is for your reference only,please check specifications for details

165048 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC32334303
Category:
Terminal
Package:
-
Datasheet:
Datasheet 3D Model
Description:
AMP - TE CONNECTIVITY 165048Pin Terminal, SOLISTRAND Series, Crimp, 12AWG, 10AWG, 2.6mm
Stock Locations:
Availability:
243 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.18

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SOLISTRAND series Terminal and Splice offer superior performance characteristics while terminating solid and stranded wire or irregular shaped conductors. Matching the terminal to the tool makes quality control easy and performance consistent. Corrosion and vibration resistance and tensile strength of these terminals and splices are well within the limits of commercial specifications. The SOLISTRAND line includes terminals, parallel and butt splices, flat rings, spades, hooks and flanged tongue terminals in various sizes. It feature dimples or serrations inside the wire barrel provide optimum tensile strength and maximum electrical contact area after crimping.
Brazed seam for uniform metal strength around the entire barrel area
Brazed seam also prevents pinched wires
W crimp provides excellent electrical performance and higher tensile strength
Bell mouth on barrel entrance makes insertion of wires easier
170°C Maximum temperature

Show

165048 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	165048 Pin
Case/Package	-
Wire Gauge	10AWG ~ 12AWG
	Show
Size-Length	20.7 mm
Contact Material	Copper
Material	Copper
Insulation Material	Non-Insulated
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
