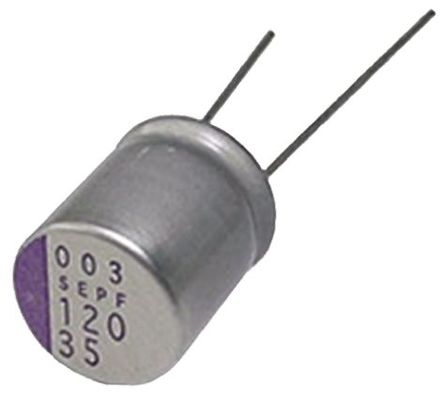

Image is for your reference only,please check specifications for details

16SEPF150M - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC49592163
Category:
Capacitor
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum Polymer 150uF 16VDC 20% (6.3 X 5.5mm) Radial 2.5mm 0.03Ω 2590mA 5000H 105℃ Bulk
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Many integrated circuits cannot handle drastic changes in input power; Panasonic"s 16SEPF150M conductive polymer aluminum solid capacitor can help solve this problem. Users like its long lead wire form. It can withstand a voltage of 16 VDC. It has 2 terminals. This part has a lead diameter of 0.45 mm. It has a tolerance of 20%. Its leakage current is 480@2Min μA. This product is 5.5(Max) mm tall with a diameter of 6.3 mm. This product"s terminal pitch is 2.5 mm. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. The 16SEPF150M conductive polymer aluminum solid capacitor has a radial termination style.

Show

16SEPF150M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	-
Voltage Rating (DC)	16.0 V
Capacitance	150 µF
Equivalent Series Resistance (ESR)	30 mΩ
Capacitance Tolerance	±20 %
Ripple Current	2590 mA
Ripple Current (Low Frequency)	129.5mA @120Hz
Ripple Current (High Frequency)	2.59A @100kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	16 V
	Show
Size-Height	5.5 mm
Size-Diameter	6.30 mm
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Unknown
Packaging	Bulk
Life (Hours)	5000h @105℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
