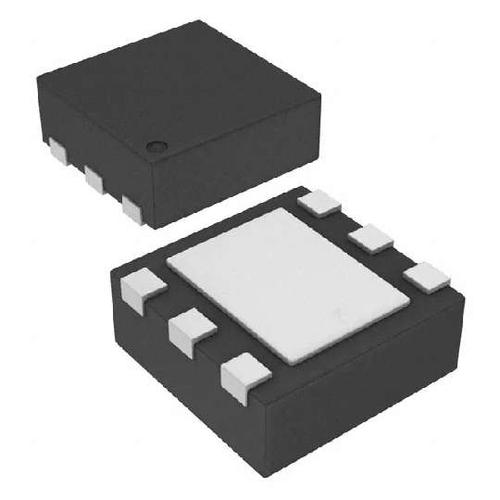

TPS715A33DRVR - TI
Manufacturer:
TI
ManyChip's Part#:
MC15294225
Category:
Voltage Regulator
Package:
WDFN-6
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 80mA, Fixed(3.3V), High Input Voltage, Low Quiescent Current LDO Regulator Pos 3.3V 0.08A 6Pin WSON EP T/R
Stock Locations:
Availability:
10,729 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.54

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS715A low-dropout (LDO) voltage regulators offer the benefits of high input voltage, low-dropout voltage, low-power operation, and miniaturized packaging. The devices operate over an input range of 2.5 V to 24 V and are stable with any capacitor (≥ 0.47 µF). The high maximum input voltage combined with excellent power dissipation capability makes this device particularly well-suited to industrial and automotive applications.
A PMOS pass element functions as a low-value resistor. The low dropout voltage, typically 670 mV at 80 mA of load current, is directly proportional to the load current. The low quiescent current (3.2 µA typically) is nearly constant over the entire range of output load current (0 mA to 80 mA).
The TPS715A is available in a 3-mm × 3-mm package ideal for high power dissipation and a small 2-mm × 2-mm package ideal for handheld and ultra-portable applications. The 3-mm × 3-mm package is also available as a non-magnetic package for medical imaging applications.

Show

TPS715A33DRVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	80 mA
Supply Current	4.2µA ~ 5.8µA
Number of Positions	6 Position
Power Dissipation	1.54 W
Quiescent Current	0.0032 mA
Output Capacitor Type	Ceramic
voltage rating	670 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	24 V
Input Voltage (Min)	2.5 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.08 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1540 mW
Accuracy	±4 %
Supply Voltage (Min)	2.5 V
Input Voltage	≤24 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
