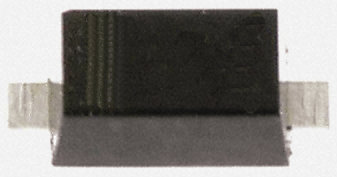

Image is for your reference only,please check specifications for details

MBR230LSFT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC895830
Category:
Schottky Diode
Package:
SOD-123-2
Datasheet:
Datasheet 3D Model
Description:
ON Semi MBR230LSFT1G, SMT Schottky Switching Diode, 30V 2A, 2Pin SOD-123FL
Stock Locations:
Availability:
1,303 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.35

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBR230LSFT1G is a surface-mount Schottky Power Rectifier with moulded epoxy case. This device uses the Schottky barrier principle with a large area metal-to-silicon power diode. Ideally suited for low voltage, high frequency rectification or as free-wheeling and polarity protection diodes in surface-mount applications where compact size and weight are critical to the system. This package also provides an easy to work with alternative to leadless 34 package style. Because of its small size, it is ideal for use in portable and battery powered products. Typical applications are AC-DC and DC-DC converters, reverse battery protection and or-ing of multiple supply voltages and any other application where performance and size are critical.
Cathode band polarity designator
All external surfaces corrosion-resistant
Guard-ring for stress protection
Low forward voltage
UL94V-0 Flammability rating
Designed for optimal automated board assembly
AEC-Q101 qualified and PPAP capable

Show

MBR230LSFT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123-2
Halogen Free Status	Halogen Free
Load Current	2 A
Number of Positions	2 Position
Forward Voltage	0.43 V
Thermal Resistance	26℃/W (RθJL)
Forward Current	2 A
Max Forward Surge Current (Ifsm)	40 A
Maximum Forward Voltage (Max)	430 mV
Forward Current (Max)	2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.9 mm
Size-Width	1.8 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
