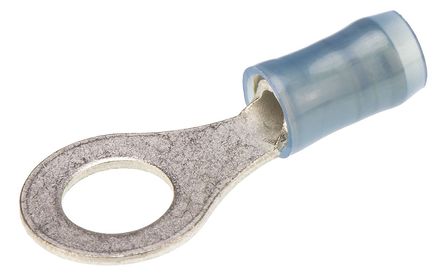

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Pre-Insulated Diamond Grip Ring Tongue Terminals
320563 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | - |
| Gender | Female |
| Wire Gauge | 14AWG ~ 16AWG |
| Contact Plating | Tin |
| Voltage Rating (DC) | 300 V |
| Voltage Rating (AC) | 300 V |
| Orientation | Straight |
| Termination Style | Ring Lug, Ring |
| Voltage Rating (Max) | 300 VAC |
| Voltage Rating | 300 VAC |
| Show | |
| Size-Length | 27.38 mm |
| Size-Width | 11.9 mm |
| Size-Thickness | 0.79 mm |
| Color | Blue |
| Contact Material | Copper |
| Material | Copper |
| Insulation Material | Nylon |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
