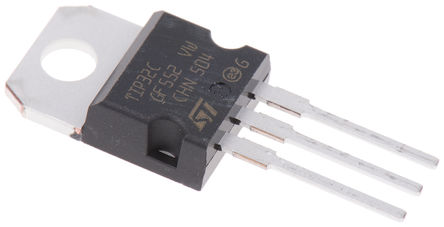

The TIP32C is a -100V Silicon Epitaxial Base PNP Power Transistor intended for use in medium power linear and switching applications. Fast switching times and very low saturation voltage resulting in reduced switching and conduction losses.
Complementary to the TIP31C
Well-controlled hFE parameter for increased reliability

Show

TIP32C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	-100 V
Current Rating	-3.00 A
Number of Positions	3 Position
Polarity	NPN, PNP, P-Channel
Power Dissipation	40 W
Breakdown Voltage (Collector to Emitter)	100 V
hFE Min	10 @3A, 4V
Input Power (Max)	2 W
DC Current Gain (hFE)	50
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	2000 mW
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
