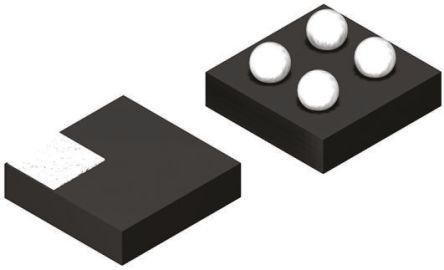

Image is for your reference only,please check specifications for details

TPS22908YZTT - TI
Manufacturer:
TI
ManyChip's Part#:
MC8286129
Category:
Power Distribution
Package:
UFBGA-4
Datasheet:
Datasheet 3D Model
Description:
3.6V, 1A, 30mΩ Load Switch with Quick Output Discharge 4-DSBGA -40℃ to 85℃
Stock Locations:
Availability:
248 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.35

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Always turn on and off high current and voltage devices with this TPS22908YZTT power switch by Texas Instruments. This charge controller has single output. This charge controller has an input voltage of 1 to 3.6 V. It features 0.112 Ohm switch on resistance. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This charge controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

TPS22908YZTT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	UFBGA-4
Number of Outputs	1 Output
Input Voltage (DC)	3.60 V
Output Voltage	0V ~ 3.6V
Output Current	1 A
Number of Channels	1 Channel
Number of Positions	4 Position
Quiescent Current	190 nA
Output Current (Max)	1 A
Output Current (Min)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	3.6 V
	Show
Size-Length	0.92 mm
Size-Width	0.918 mm
Size-Height	0.435 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
