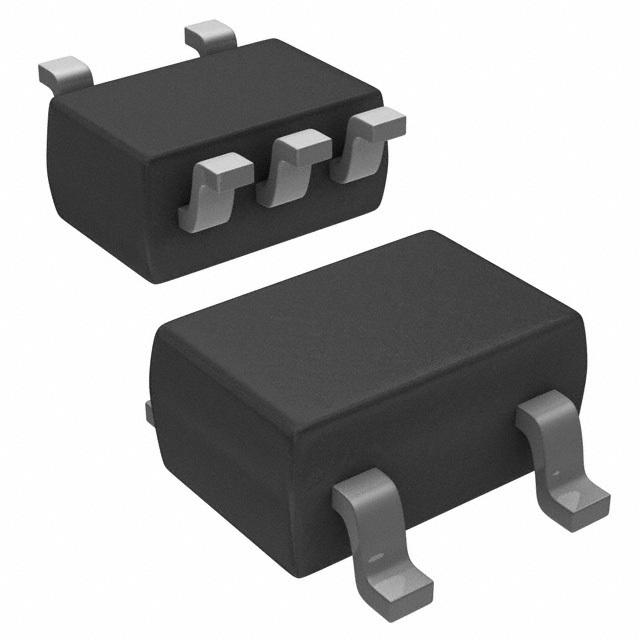

Image is for your reference only,please check specifications for details

LMV7239M7 - TI
Manufacturer:
TI
ManyChip's Part#:
MC11901600
Category:
Comparator, Analog Comparator IC
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LMV7239M7 Analogue Comparator, Low Power, 1, 45ns, 2.7V to 5.5V, SC-70, 5Pins
Stock Locations:
Availability:
1,558 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.16

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The LMV7235/LMV7239/LMV7239Q are ultra low power, low voltage, 75 nsec comparators. They are guaranteed to operate over the full supply voltage range of 2.7V to 5.5V. These devices achieve a 75 nsec propagation delay while consuming only 65µA of supply current at 5V.
The LMV7235/LMV7239/LMV7239Q have a greater than rail-to-rail common mode voltage range. The input common mode voltage range extends 200mV below ground and 200mV above supply, allowing both ground and supply sensing.
FEATURES
• (VS = 5V, TA = 25°C
• Typical values unless otherwise specified)
• Propagation delay 75 nsec
• Low supply current 65µA
• Rail-to-Rail input
• Open drain and push-pull output
• Ideal for 2.7V and 5V single supply
applications
• Available in space saving packages
– 5-pin SOT-23
– 5-pin SC70
• LMV7239Q is an automotive grade product that is AECQ grade 1 qualified and is manufactured on an automotive grade flow.
APPLICATIONS
• Portable and battery powered systems
• Scanners
• Set top boxes
• High speed differential line receiver
• Window comparators
• Zero-crossing detectors
• High speed sampling circuits
• Automotive

Show

LMV7239M7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Operating Voltage	5.00V (max)
Output Current	55.0 mA
Supply Current	0.095 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	67 dB
Input Offset Voltage	6 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
