Description

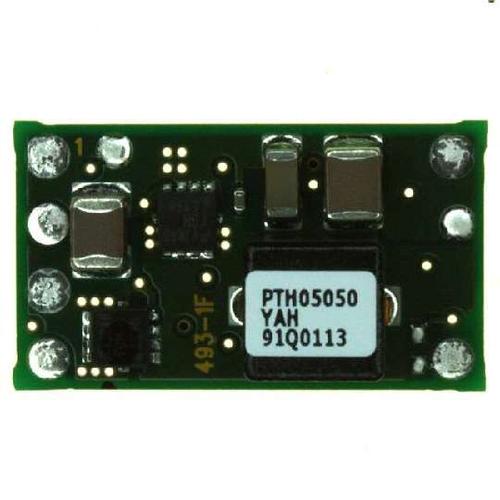

- Provide the ability to switch between voltages by using this step down PTH05050YAH DC to DC converter and switching regulator module. It has a voltage of 0.55 to 1.8 V. This part has a temperature range of -40 °C to 85 °C. This component will be shipped in tray format.
PTH05050YAH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP-6 |
| Supply Voltage (DC) | 5.00 V |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 4.50V ~ 5.50V |
| Output Voltage | 0.55V ~ 1.8V |
| Output Current | 6 A |
| Flammability Rating | UL 94 V-0 |
| Quiescent Current | 10.0 mA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 550kHz ~ 650kHz |
| Topology | Buck |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 4.5 V |
| Input Voltage (DC Max) | 5.5 V |
| Input Voltage (DC Min) | 4.5 v |
| Output Voltage (Max) | 1.8 V |
| Output Voltage (Min) | 550 mV |
| Output Current (Max) | 6 A |
| Input Power (Max) | 10.8 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 4.5V ~ 5.5V |
| Show | |
| Size-Length | 22.1 mm |
| Size-Width | 12.57 mm |
| Size-Height | 8.5 mm |
| Weight | 2.90 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
