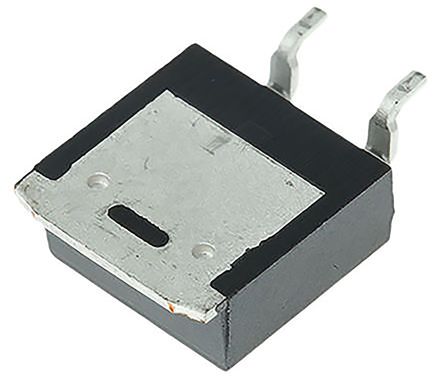

Image is for your reference only,please check specifications for details

IFX25001TFV50ATMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC18867637
Category:
Voltage Regulator
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
INFINEON IFX25001TFV50ATMA1 Fixed LDO Voltage Regulator, 5.5V to 40V, 250mV Dropout, 5Vout, 400mAout, TO-252-3
Stock Locations:
Availability:
223 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.69

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IFX25001TF V50 is a low dropout linear Voltage Regulator capable of supplying continuous output current up to 400mA. A wide input voltage range up to 45V enables this to operate in a large variety of applications. This regulator is also protected against overload, short-circuit and over-temperature conditions.
Low current consumption
Low dropout voltage
Output current limitation
Reverse polarity protection
Over-temperature shutdown

Show

IFX25001TFV50ATMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	400 mA
Number of Positions	3 Position
Quiescent Current	0.1 mA
voltage rating	250 mV
Input Voltage (Max)	40 V
Input Voltage (Min)	5.5 V
Output Current (Max)	0.4 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±4 %
Input Voltage	5.5V ~ 40V
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
