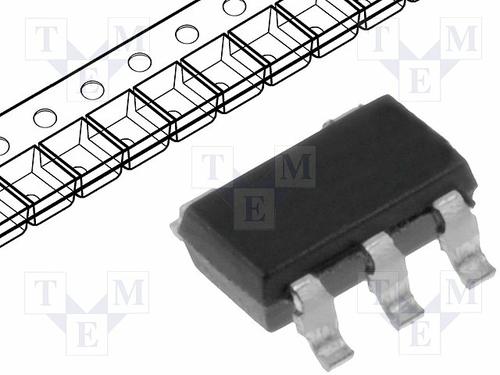

Image is for your reference only,please check specifications for details

XC6210B332MR - Torex Semiconductor
Manufacturer:
Torex Semiconductor
ManyChip's Part#:
MC1333009
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Fixed LDO Voltage Regulator, 1.5V to 6V, 100mV Dropout, 3.3Vout, 800mAout, SSOT-4
Stock Locations:
Availability:
1,355 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The XC6210B332MR is a high current, high speed LDO Regulator IC fabricated using Torexs CMOS process. With a low ON resistance driver transistor built into, batteries can be used until input-output voltage differential is minimal and can accordingly be used for a longer time. It is compatible with low ESR ceramic capacitors which give added output stability. The current limiters fold-back circuit also operates as the output current limiter and the output pin protection.
0.8 to 5.0V Output voltage range
±2% Highly accurate
35µA Typical Low power consumption
60dB at 1kHz High ripple rejection

Show

XC6210B332MR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Operating Voltage	1.5V ~ 6V
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	700 mA
Number of Positions	5 Position
Power Dissipation	600 mW
voltage rating	50 mV
Input Voltage (Max)	6 V
Input Voltage (Min)	1.5 V
Output Current (Max)	0.8 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	600 mW
Accuracy	2 %
Number of Output Channels	1 Channel
Supply Voltage (Min)	1.5 V
Input Voltage	≤6 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
