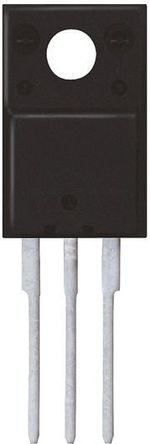

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FDPF5N50NZU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Polarity	N-Channel
Power Dissipation	30 W
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	3.9A
Input Capacitance (Ciss)	485pF @25V(Vds)
Input Power (Max)	30 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	30W (Tc)
	Show
Size-Length	10.16 mm
Size-Width	4.7 mm
Size-Height	15.87 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
