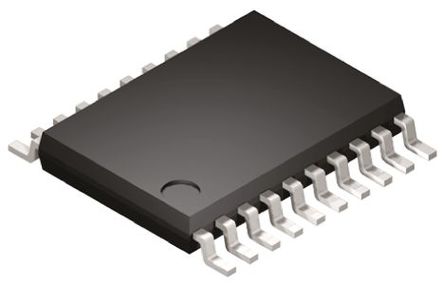

Image is for your reference only,please check specifications for details

MAX3223IPWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC4404340
Category:
Interface IC, Interface Controller
Package:
TSSOP-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS MAX3223IPWR RS232 Transceiver IC, 2 Drivers, 250Kbps, 3V to 5.5V, TSSOP-20
Stock Locations:
Availability:
171 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.47

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX3223IPWR is a RS-232 multichannel Line Driver/Receiver with ±15kV ESD protection pin-to-pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3 to 5.5V supply. The device operates at data signalling rates up to 250kbps and a maximum of 30V/µs driver output slew rate. Flexible control options for power management are available when the serial port is inactive. The auto-power-down feature functions when FORCEON is low and FORCEOFF is high. During this mode of operation, if the device does not sense a valid RS-232 signal, the driver outputs are disabled. If FORCEOFF is set low and EN is high, both drivers and receivers are shut off and the supply current is reduced to 1µA.
Alternative high-speed pin-compatible device (1Mbps) for SNx5C3223
0.8V Driver and control low-level input voltage
Green product and no Sb/Br

Show

MAX3223IPWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Supply Voltage (DC)	3.30 V, 5.00 V
Output Voltage	5.40 V
Output Current	60.0 mA
Supply Current	10 mA
Number of Positions	20 Position
Data Rate	250 kbps
Drivers Per Package	2
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	6.5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
