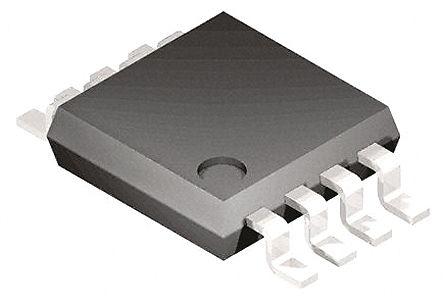

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Functional Description
- The TLE4253 is a monolithic integrated low-dropout voltage tracking regulator in small PG-DSO-8 packages. The exposed pad (EP) package variant PG-DSO-8 exposed pad offers extremely low thermal resistance. The IC is designed to supply off-board systems, e. g. sensors in engine management systems under the severe conditions of automotive applications. Therefore, the IC is equipped with additional protection functions against reverse polarity and short circuit to GND and battery.
- With supply voltages up to 40 V, the output voltage follows a reference voltage applied at the adjust input with high accuracy. The reference voltage applied directly to the adjust input or by an e. g. external resistor divider can be 2.0 V at minimum.
- The output is able to drive loads up to 250 mA at minimum while the device follows the e. g. 5 V output of a main voltage regulator acting as reference with high accuracy.
- The TLE4253 tracker can be set into shutdown mode in order to reduce the quiescent current to an extremly low value. This makes the IC suitable to low power battery applications.
- Features
- • Tight output tracking tolerance to reference
- • Output voltage adjust down to 2.0 V
- • Stable with ceramic output capacitor
- • Flexibility of output voltage adjust higher or lower than reference, proportional to the reference voltage
- • 250 mA output current capability
- • Low dropout voltage
- • Combined tracking / enable input
- • Very low current consumption in OFF mode
- • PG-DSO-8 packages with lowest thermal resistance
- • Wide input voltage range -42 V ≤ VI ≤ 45 V
- • Wide temperature range: -40 °C ≤ Tj ≤ 150 °C
- • Output protected against short circuit to GND and battery
- • Overtemperature protection
- • Reverse polarity proof
- • Suitable for use in automotive electronics
- • Green Product (RoHS compliant)
- • AEC Qualified
TLE4253GS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PG-DSO-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 2V ~ 45V |
| Output Current | 250 mA |
| Quiescent Current | 15 mA |
| voltage rating | 0.28V @200mA |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 3.5 V |
| Output Current (Max) | 250 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | 0.5 % |
| Input Voltage | 3.5V ~ 40V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.45 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
