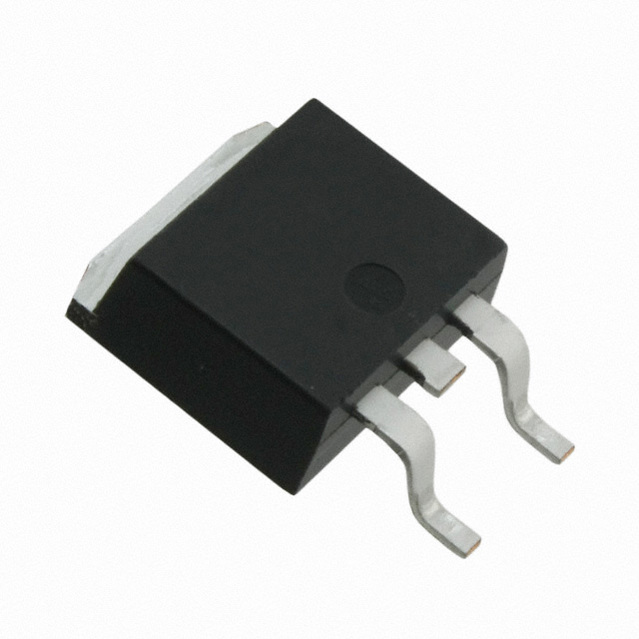

Image is for your reference only,please check specifications for details

IKD06N60R - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC118797471
Category:
IGBT Transistor, IGBT Module
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
Trans IGBT Chip N-CH 600V 12A 100000mW Automotive 3Pin(2+Tab) DPAK T/R
Stock Locations:
Availability:
280 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.32

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
Optimized parameters for up to 20% lower switching losses
Operating range of DC to 30kHz
Max junction temperature 175°C
Short circuit capability of 5µs
Very tight parameter distribution
Best in class current versus package size performance
Smooth switching performance leading to low EMI levels
Benefits:
Excellent cost/performance for hard switching applications
Outstanding temperature stability
Very good EMI behavior
Up to 60% space saving on the PCB
Higher reliability due to monolithically integrated IGBT & diode due to less thermal cycling during switching

Show

IKD06N60R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Power Rating	100 W
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	68 ns
Input Power (Max)	100 W
	Show
Operating Temperature	-40℃ ~ 175℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
