Description

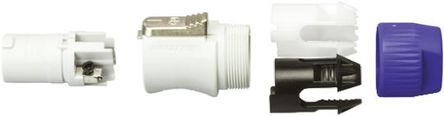

- The NAC3FCB is a Female AC Power Connector with screw contact termination, 4µm Ag-plated bronze (CuSn6) contact, polyamide (PA6 30% GR) inserts, zinc die-cast (ZnAl4Cu1) locking elements, polyamide (PA6 30% GR) shell and polyacetal (POM) strain relief, 14AWG wire. The powerCON is a locking 3-conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating.
- * >0.1GR (after damp heat test IEC 68-2-30) Insulation resistance
- >1000 Mating cycles lifetime
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- Unique chuck type strain relief
- Improved kink protection by two-component bushing
- New bushing design avoids unintended opening
- PowerCON is a connector without breaking capacity i.e. the powerCON should not be connected or disconnected under load or live.
NAC3FCB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 3 Pin |
| Case/Package | - |
| Number of Contacts | 3 Contact |
| Gender | Female |
| Contact Plating | Silver |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Current Rating | 20 A |
| Insulation Resistance | 100 MΩ |
| Orientation | Straight |
| Flammability Rating | UL 94 HB |
| Contact Resistance | 3 mΩ |
| Current Rating (Max) | 20A/触头 |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating (Max) | 250 V |
| Voltage Rating | 250 VAC |
| Maximum Contact Resistance (Max) | 3 mΩ |
| Show | |
| Size-Length | 73 mm |
| Size-Width | 26 mm |
| Size-Diameter | 25.8 mm |
| Color | Gray |
| Contact Material | Bronze |
| Operating Temperature | -30℃ ~ 80℃ |
| Housing Material | Nylon |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
| HTS Code | 8536694020 |
| ECCN Code | EAR99 |
