1792863 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC10773623
Category:
Terminal Block, Connector Terminal
Package:
-
Datasheet:
Datasheet 3D Model
Description:
PHOENIX CONTACT 1792863 Wire-To-Board Terminal Block, 5mm, 2Positions, 26AWG, 14AWG, 2.5mm², Push In
Stock Locations:
Availability:
1,807 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

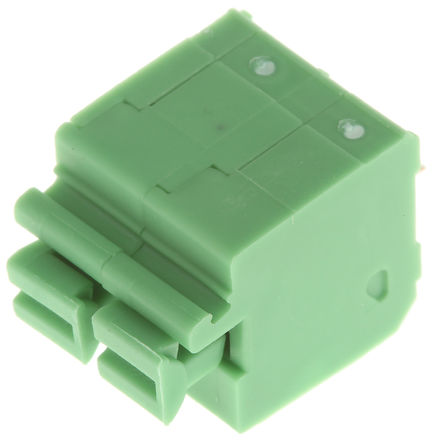

The 1792863 is a 2-position 5mm spring cage horizontal PCB Terminal Block with PA (polyamide) insulator, push-in spring connection method and through hole right angle block orientation. 2.5mm² conductor area, soldering mounting and 14 to 26AWG wire size.
UL94V-0 Flammability rating
Sn solder pin surface
8mm Strip length
Compact design
Test connection
Conductor connection with direct plug-in technology
Integrated release button

Show

1792863 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	-
Number of Contacts	2 Contact
Wire Gauge	26.0 AWG
Current Rating	12 A
Number of Rows	1 Row
Number of Circuits	2 Circuit
Number of Positions	2 Position
Current Rating (Max)	16 A
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	400 V
Voltage Rating	400 V
Operating Voltage (Max)	400 V
	Show
Size-Length	10 mm
Size-Width	13.6 mm
Size-Height	13.6 mm
Housing Color	Green
Color	Green
Contact Material	Copper Alloy
Material	Polyamide (PA)
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
