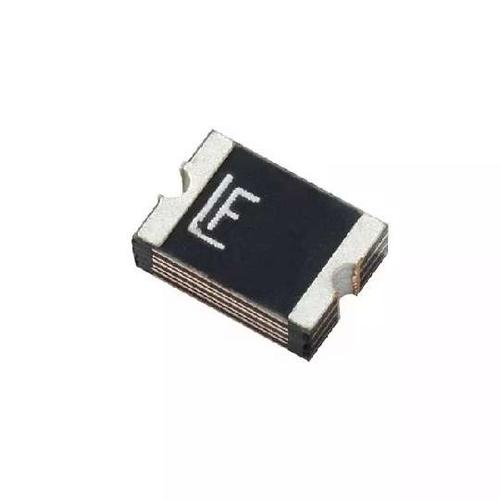

Image is for your reference only,please check specifications for details
- 1812L020PR - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC552283
-
Category:Fuse
-
Package:1812
-
Datasheet:Datasheet 3D Model
-
Description:PTC Resettable Fuse 0.2A(hold) 0.4A(trip) 30VDC 100A 0.8W 0.02s 0.8Ω SMD Solder Pad 1812 T/R
-
Stock Locations:
-
Availability:9,291 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.03
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- POLYFUSE® Resettable PTCs
- Surface Mount > 1812L Series
- Description
- The 1812L Series PTC provides surface mount overcurrent protection for applications where resettable protection is desired.
- Features
- • RoHS compliant, lead-free and halogen-free1
- • Fast response
- • Compact design
- • Low resistance
- • Low-profile
- • Compatible with high temperature solders
- Applications
- • Plug and play protection for motherboards and peripherals
- • USB peripherals
- • PCI cards
- • Game console port protection
1812L020PR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 4532 |
| Case/Package | 1812 |
| Voltage Rating (DC) | 30.0 V |
| Operating Voltage | 30.0 V |
| Time to Trip | 20 ms |
| Current Rating | 200 mA |
| Power Dissipation | 0.8 W |
| Resistance | 5 Ω |
| Holding Current | 200 mA |
| Trip Current | 400 mA |
| Current Rating (Max) | 100 A |
| Holding Current (Max) | 200 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 30 VDC |
| Voltage Rating | 30 VDC |
| Operating Voltage (Max) | 30 V |
| Show | |
| Size-Length | 4.37 mm |
| Size-Width | 3.07 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
