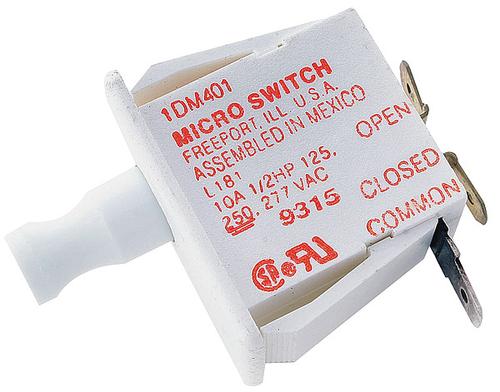

Image is for your reference only,please check specifications for details

1DM401 - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC6514667
Category:
Switch
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Switch Safety Interlock N.O./N.C. SPDT Finger Grip Plunger 10A 277VAC 372.85VA 4.17N Panel Mount Quick Connect 1000000Cycles
Stock Locations:
Availability:
263 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.35

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1DM401 is a single-pole double-throw (SPDT) snap-in panel-mount safety interlock Basic Switch with quick-connect/solder terminals for ease of installation. The MICRO SWITCH™ DM series accepts a button for manual operation and has pull-to-cheat action, white finger grip plunger. The switch is designed for a variety of applications and known for their compact, lightweight design and accurate repeatability.
White faceplate
Long life
-37 to 82°C Operating temperature range

Show

1DM401 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel, Snap-In, Quick Connect
Case/Package	-
Voltage Rating (AC)	125 V
Current Rating	10 A
Contacts Type	SPDT
Number of Positions	2 Position
Contact Current Rating	10.0 A
Current Rating (Max)	10 A
Operating Temperature (Max)	82 ℃
Operating Temperature (Min)	-37 ℃
Voltage Rating	277 VAC
Voltage Rating (AC Max)	277 V
	Show
Size-Height	51.05 mm
Contact Material	Silver
Operating Temperature	-37℃ ~ 82℃
Housing Material	Polyester
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536509055
ECCN Code	EAR99
