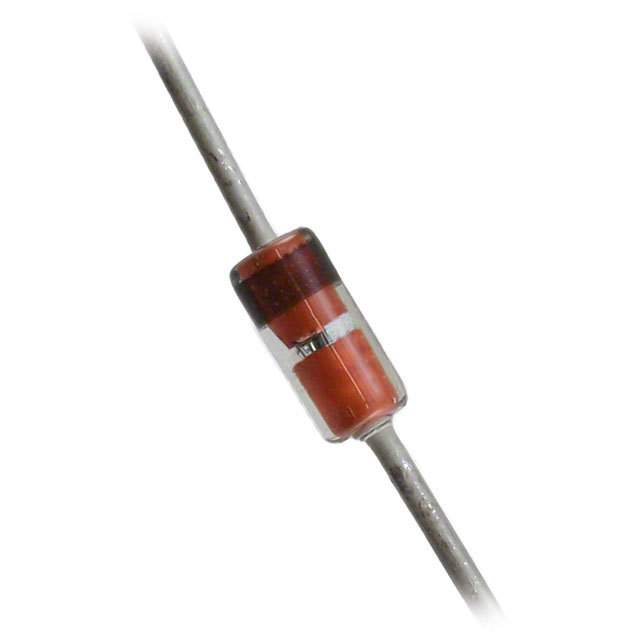

Image is for your reference only,please check specifications for details
Updated at 04/12/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Standard 200V 500mA Through Hole DO-35
1N3070 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-35 |
| Voltage Rating (DC) | 200 V |
| Current Rating | 500 mA |
| Capacitance | 5.00 pF |
| Output Current | ≤500 mA |
| Forward Voltage | 1V @100mA |
| Polarity | Standard |
| Reverse recovery time | 50 ns |
| Maximum Forward Voltage (Max) | 1V @100mA |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | 175℃ (Max) |
| Show | |
| Size-Width | 1.91 mm |
| Product Lifecycle Status | Obsolete |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
