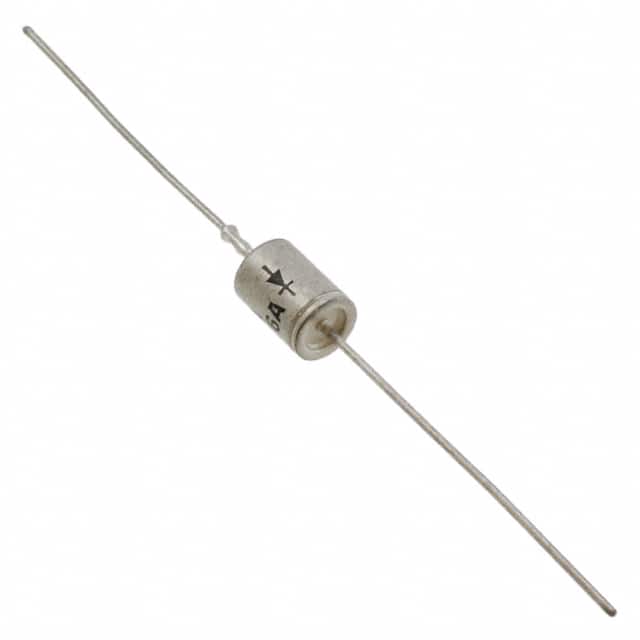

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- This Transient Voltage Suppressor (TVS) series for 1N5555 thru 1N5558 are JEDEC registered selectionsfor unidirectional devices. All have the samehigh Peak Pulse Power ratingof 1500 W with extremely fast responsetimes. They arealso available in military qualified selectionsas described inthe Featuressection herein. They aremost often usedfor protecting against transients from inductive switching environments, induced RF effects, or induced secondary lightningeffects asfound in lower surge levels of IEC61000-4-5.
1N5555 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-13 |
| Number of Circuits | 1 Circuit |
| Power Dissipation | 1500 W |
| Clamping Voltage | 47.5 V |
| Test Current | 1 mA |
| Peak Pulse Power | 1500 W |
| Min Breakdown Voltage | 33 V |
| Reverse Breakdown Voltage | 33 V |
| Show | |
| Operating Temperature | -65℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
