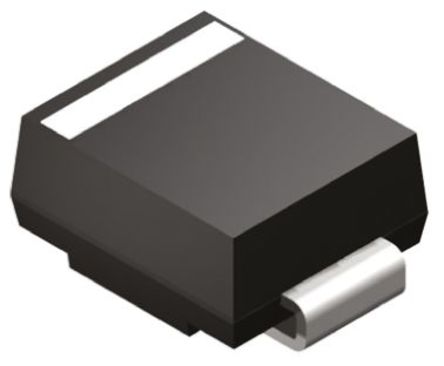

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

1SMB33CAT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMB
Capacitance	265 pF
Halogen Free Status	Halogen Free
Breakdown Voltage	36.7 V
Number of Circuits	1 Circuit
Power Dissipation	600 W
Clamping Voltage	53.3 V
Max Repetitive Reverse Voltage (Vrrm)	33V
Test Current	1 mA
Max Breakdown Voltage	40.6 V
Peak Pulse Power	600 W
Min Breakdown Voltage	36.7 V
Reverse Breakdown Voltage	36.7 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	Show
Size-Length	4.57 mm
Size-Width	3.95 mm
Size-Height	2.41 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
