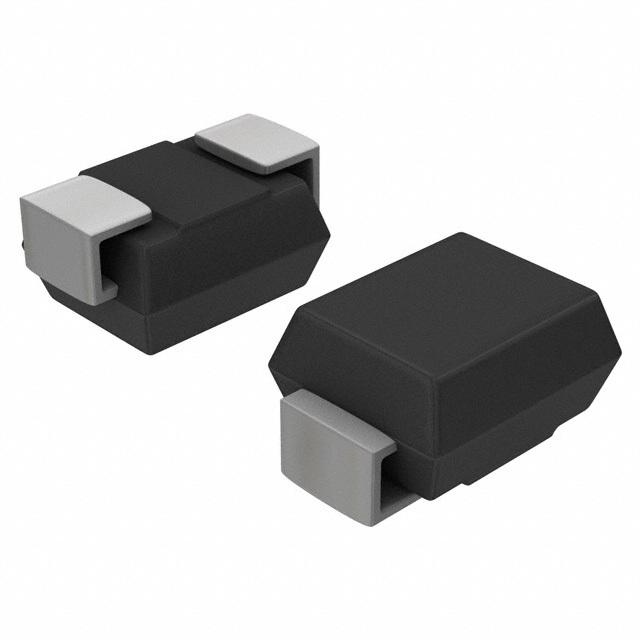

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 3 Watt Plastic Surface Mount Zener Voltage Regulators
- This complete new line of 3 Watt Zener diodes offers the following advantages.
- Features
- •Zener Voltage Range − 3.3 V to 200 V
- •ESD Rating of Class 3 (>16 kV) per Human Body Model
- •Flat Handling Surface for Accurate Placement
- •Package Design for Top Side or Bottom Circuit Board Mounting
- •Pb−Free Packages are Available
1SMB5914BT3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AA |
| Voltage Rating (DC) | 3.60 V |
| Capacitance Tolerance | ±5 % |
| Power Rating | 3.00 W |
| Forward Voltage | 1.5V @200mA |
| Power Dissipation | 550 mW |
| Test Current | 104.2 mA |
| Zener Voltage | 3.6 V |
| Maximum Forward Voltage (Max) | 1.5V @200mA |
| Input Power (Max) | 3 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Material | Plastic |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
